Surface: Surface mounted lights for discreet and low-profile purposes that provide targeted illumination.

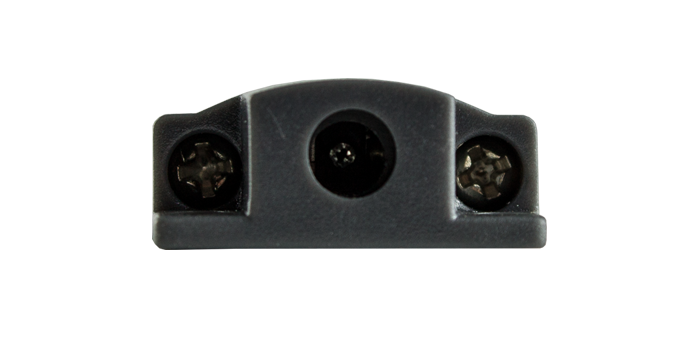

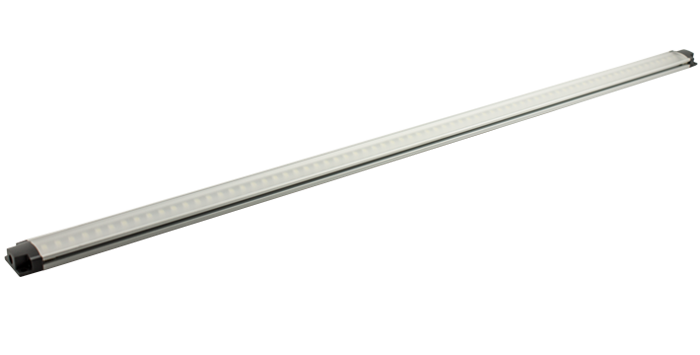

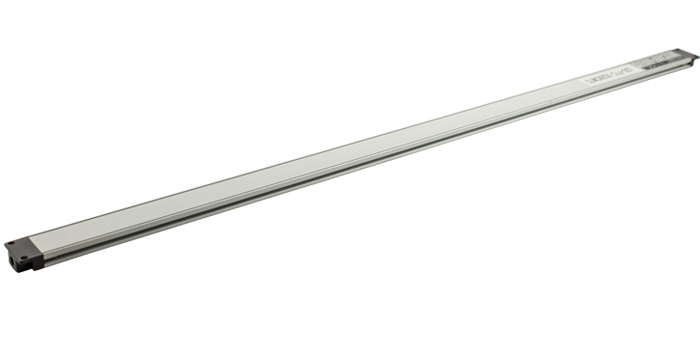

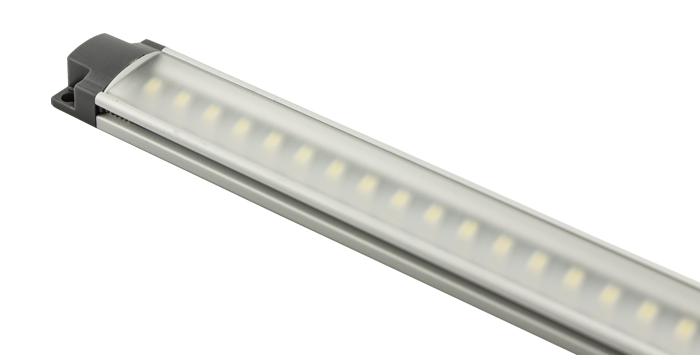

LDS-B500/5


5W CabinetLight

Wattage :5

Lumens :360-450

Dimensions :500 x 29 x 9

Description :This low profile cabinet light can be discretely installed for local area illumination or as part of a series of lights. The 3.5mm power connector makes it easy to install and add extra lights.


LDS-B500/5


Total Power:5

Lumens: 360-450

CCT: 3000-6000

Beam Angle: 120

Lifetime: 40000

Length: 500

Width: 29

Depth: 9

Driver Type: Internal

Dimmable: No

IP Rating: 20

Datasheet:

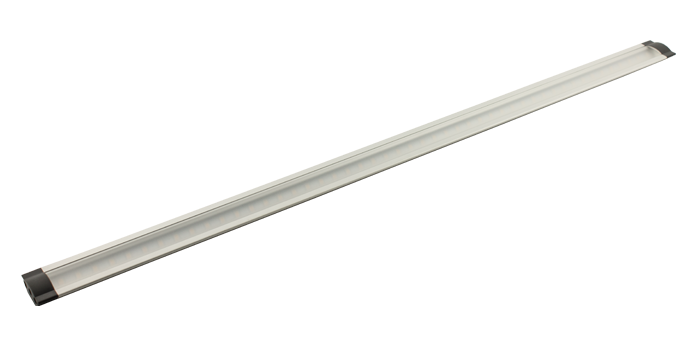

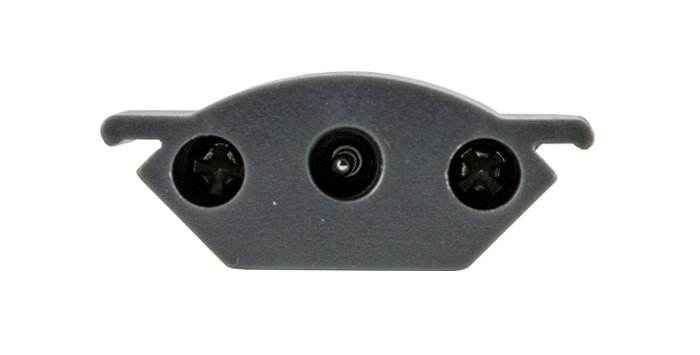

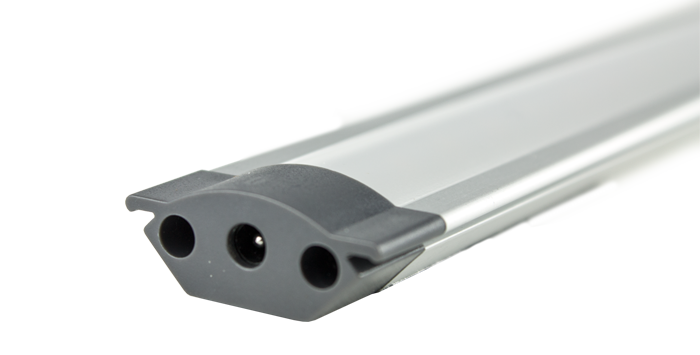

LDS-BC500/5


5W CabinetLight

Wattage :5

Lumens :360-450

Dimensions :500 x 29 x 9

Description :This low profile cabinet light can be discretely installed for local area illumination or as part of a series of lights. The 3.5mm power connector makes it easy to install and add extra lights.


LDS-BC500/5


Total Power:5

Lumens: 360-450

CCT: 3000-6000

Beam Angle: 120

Lifetime: 40000

Length: 500

Width: 29

Depth: 9

Driver Type: Internal

Dimmable: No

IP Rating: 20

Datasheet:

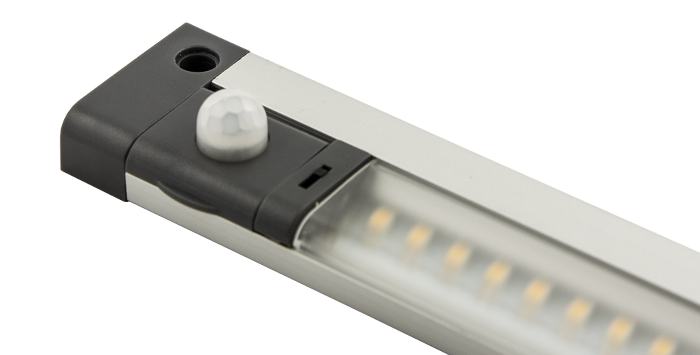

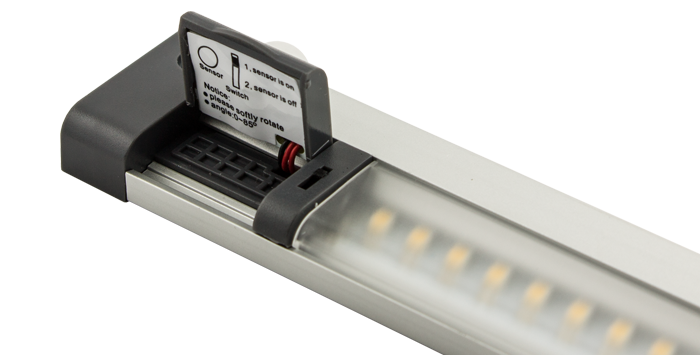

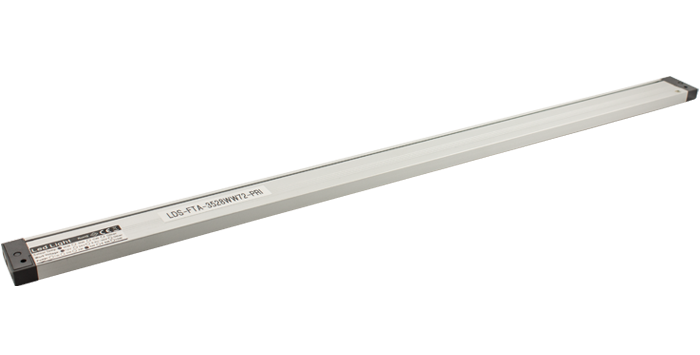

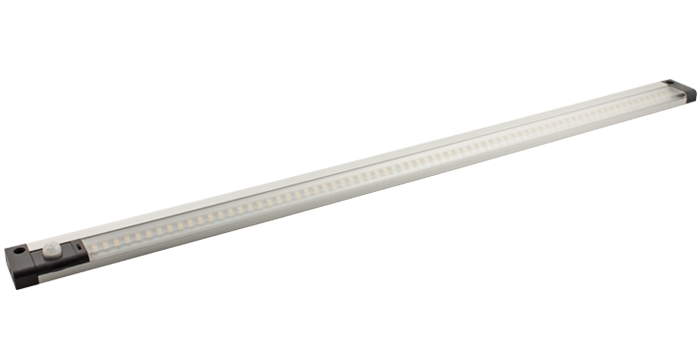

LDS-B500/MS/5


5W Motion Sensor Door Light

Wattage :5

Lumens :360-450

Dimensions :500 x 29 x 9

Description :The motion sensor in this light can detect movement and will illuminate for 60 seconds automatically. The light will remain on until it does not detect movement. The maximum range of the sensor is 2.5 meters.The 3.5mm power connector makes it easy to install and add extra lights.


LDS-B500/MS/5


Total Power:5

Lumens: 360-450

CCT: 3000-6000

Beam Angle: 120

Lifetime: 40000

Length: 500

Width: 29

Depth: 9

Driver Type: Internal

Dimmable: No

IP Rating: 20

Datasheet:

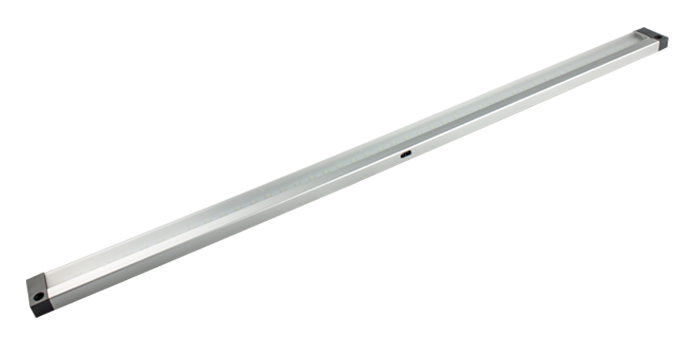

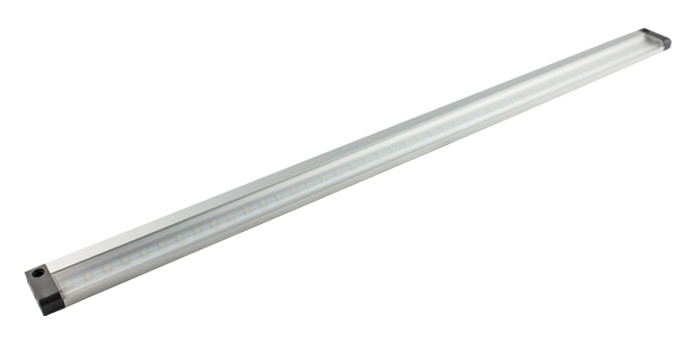

LDS-B500/IR/5


5W IR Sensor Door Light

Wattage :5

Lumens :360-450

Dimensions :500 x 29 x 9

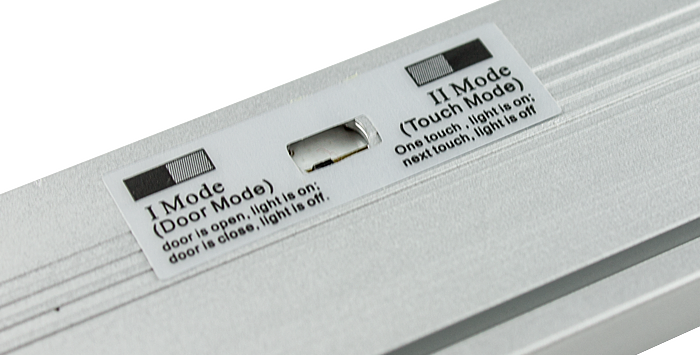

Description :The IR sensor in this light can detect when the cabinet door is open or closed and will switch on and off accordingly. It also has a 'touch' mode where the light is toggled on and off by any movement detected. The 3.5mm power connector makes it easy to install and add extra lights.


LDS-B500/IR/5


Total Power:5

Lumens: 360-450

CCT: 3000-6000

Beam Angle: 120

Lifetime: 40000

Length: 500

Width: 29

Depth: 9

Driver Type: Internal

Dimmable: No

IP Rating: 20

Datasheet:

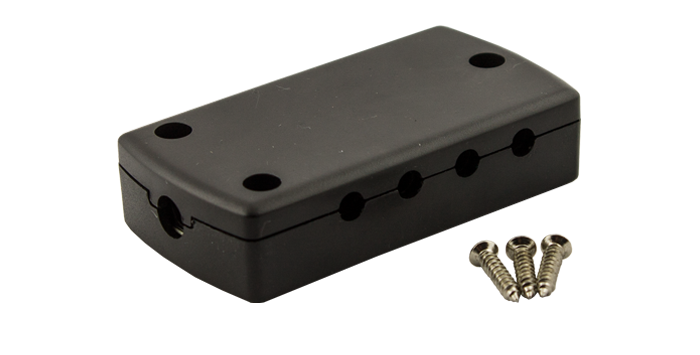

LDS-BME/3.5


8 port power splitter

Wattage :N/A

Lumens :N/A

Dimensions :70 x 40 x 15

Description :This splitter can distribute power to up to 8 light series with 3.5mm sockets. It is powered by a 5mm power supply


LDS-BME/3.5


Total Power:N/A

Lumens: N/A

CCT: N/A

Beam Angle: N/A

Lifetime: N/A

Length: 70

Width: 40

Depth: 15

Driver Type: Internal

Dimmable: No

IP Rating: 20

LDS-BDE/3.5


3.5mm connecting cable

Wattage :N/A

Lumens :N/A

Dimensions :1000 x - x -

Description :This 1 meter long connecting cable can join two lights or connect a light to a power splitter (LDS-BME3.5) with 3.5mm power sockets.


LDS-BDE/3.5


Total Power:N/A

Lumens: N/A

CCT: N/A

Beam Angle: N/A

Lifetime: N/A

Length: 1000

Width: -

Depth: -

Driver Type: Internal

Dimmable: No

IP Rating: 20

LDS-BSE/3.5


3.5mm connecting cable

Wattage :N/A

Lumens :N/A

Dimensions :1000 x - x -

Description :This 1 meter long connecting cable can join a light to a custom power source. It has a 3.5mm jack on one end and unfinished cable on the other.


LDS-BSE/3.5


Total Power:N/A

Lumens: N/A

CCT: N/A

Beam Angle: N/A

Lifetime: N/A

Length: 1000

Width: -

Depth: -

Driver Type: Internal

Dimmable: No

IP Rating: 20

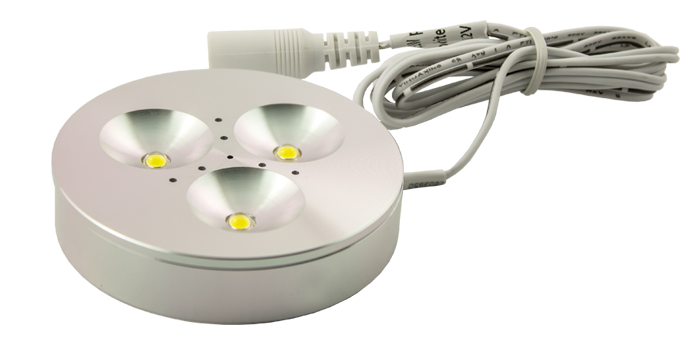

LDS-PKA1


Brushed Silver 3W Puck Light

Wattage :3

Lumens :288

Dimensions :70 x 70 x 14

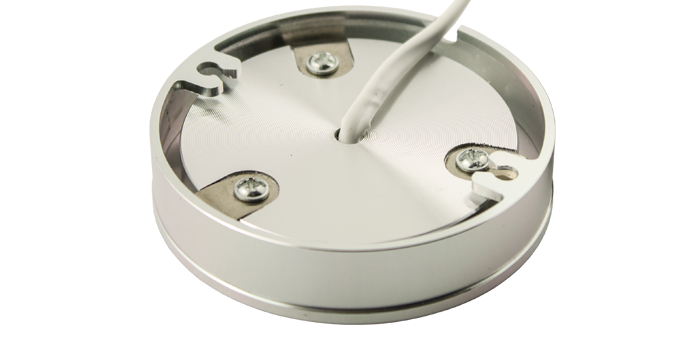

Description :This Puck Light can be mounted by fixing the outer collar to the surface or by removing the collar and fitting flush as a surface mounted light.


LDS-PKA1


Total Power:3

Lumens: 288

CCT: 2700

Beam Angle: 120

Lifetime: 40000

Length: 70

Width: 70

Depth: 14

Driver Type: External

Dimmable: No

IP Rating: 20

Datasheet:

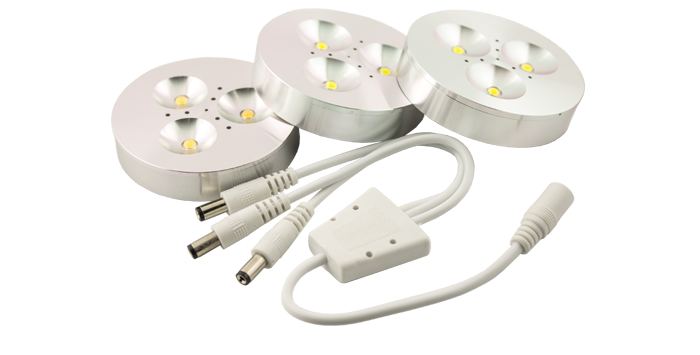

LDS-PKA1KIT


Set of 3 Brushed Silver 3W Puck Lights including split terminal connector

Wattage :9

Lumens :3 * 288

Dimensions :70 x 70 x 14

Description :This kit includes everything needed to easily fit and connect three 3W puck lights.These Puck Lights can be mounted by fixing the outer collar to the surface or by removing the collar and fitting flush as surface mounted lights.


LDS-PKA1KIT


Total Power:9

Lumens: 3 * 288

CCT: 2700

Beam Angle: 120

Lifetime: 40000

Length: 70

Width: 70

Depth: 14

Driver Type: External

Dimmable: No

IP Rating: 20

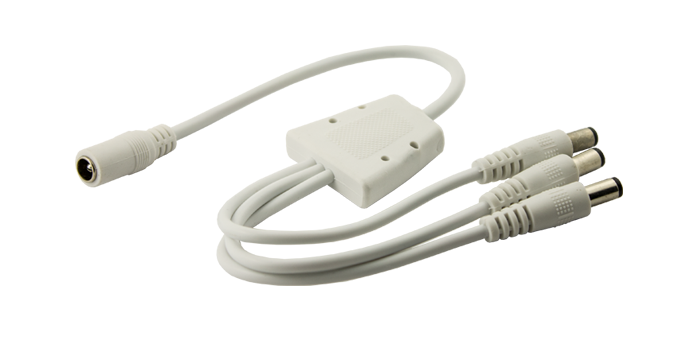

LDS-PKA1CON


3 Way terminal connector for puck lights

Wattage :N/A

Lumens :N/A

Dimensions :300 x - x -

Description :3 Way terminal connector for easy power supply.


LDS-PKA1CON


Total Power:N/A

Lumens: N/A

CCT: 2700

Beam Angle: 120

Lifetime: N/A

Length: 300

Width: -

Depth: -

Driver Type: N/A

Dimmable: No

IP Rating: 20

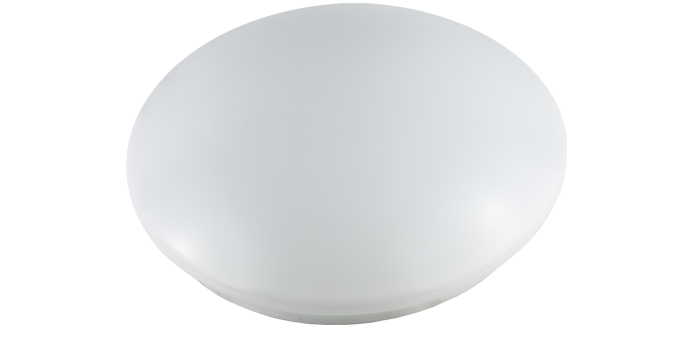

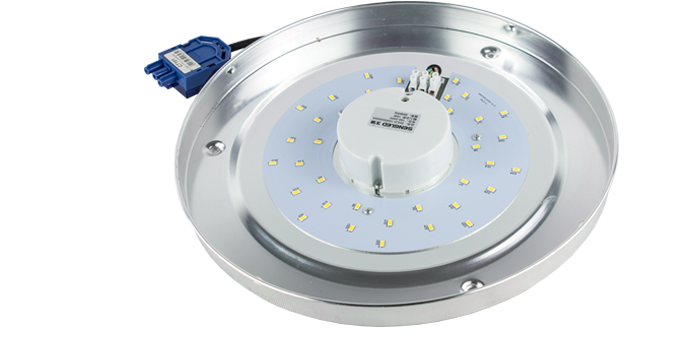

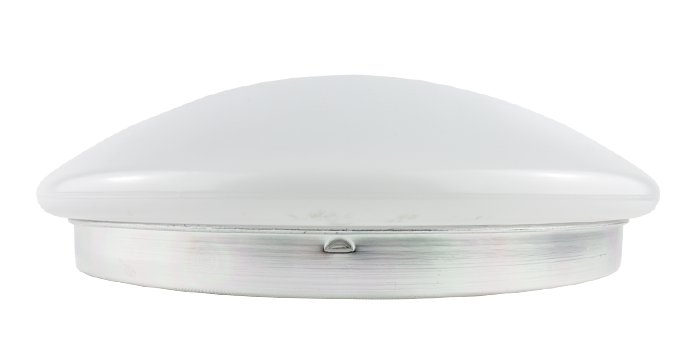

LDS-D2D/15


15W dome diffuser down light

Wattage :15

Lumens :1000

Dimensions :410 x 410 x 115

Description :The dome diffuser on this light provides a soft and even spread of light.


LDS-D2D/15


Total Power:15

Lumens: 1000

CCT: 6000

Beam Angle: 120

Lifetime: 40000

Length: 410

Width: 410

Depth: 115

Driver Type: Internal

Dimmable: No

IP Rating: 20
